Models:	EXP-24
Input Voltage:	18 to 32 Vdc
Input Current, DC:	30 A peak, 25 A continuous
Output Current, 3Ø:	30 A (21 ARMS) peak, 25 A (18 ARMS) continuous
Environmental:	Operating temperature range of -29° to 82° C
Standards/Ratings:	IP66 standard, NEMA Type 4; CSA Class I, Division 1, Groups B, C, D, and T5; EU Compliance 2014/34/EU for use in potentially explosive atmospheres (ATEX) Ex d II B T5


Input Voltage	18 to 32 VDC
Input Current, DC	30 A Peak, 25 A Continuous
Output Current, 3A	30 A (21 ARMS) Peak, 25 A (18 ARMS) Continuous
Digital Inputs	2 - Isolated, 18 to 32 VDC
Digital Outputs	2 - Isolated, 18 to 32 VDC, 250mA Continuous
Analog Input	1 - Non-isolated, 4 to 20maA, 500 Ω Input Impedance
Analog Output	2 - Isolated, 4 to 20mA, 200 Ω to 500 Ω Driving Capability
Serial Interface	Isolated RS-485, Modbus Protocol, Max. Baud Rate 38.4k
Commutation	Sinusoidal, Space Vector PWM, 10 kHz
Position Feedback	Resolver
Environmental	-29 to 82°C Operating Temperature Range
Enclosure	IP66, NEMA Type 4
N.A. Certifications	CSA Class I Division 1 Groups B, C, D, T5
E.U. Compliance	94/9/EC Potentially Explosive Atmospheres (ATEX) Ex d II B, T5
EMC	Immunity: EN 61000-6-2: 2005, Emission: EN 61000-6-4: 2007
Approx. Weight	33 lbs (15 kg)

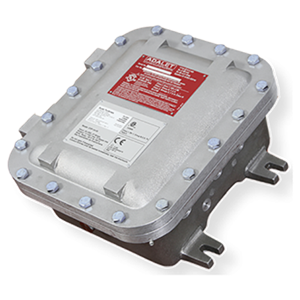

EXP-24 Electronic Positioner

Stand-Alone Accurate, Adaptable, Electronic Positioner
