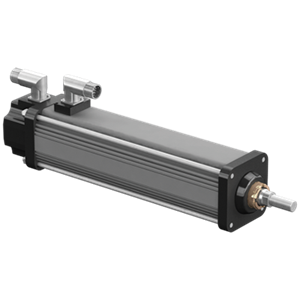

GS Series Linear Actuator

GS Series Linear Actuator

Electric Linear Actuator

Industrial - Exlar

The GS Series is an Obsolete Product, No Longer Available. Need a comparable replacement, try our GSX or GTX Series actuators!

More Details

Find a Representative Manual

Overview

Quick Data



Quick Data
Models:
 GS20, GS30, GS40, GS45. GS60
Frame Sizes:
 2.25, 3.125, 3.9, 5.0, 7.0 in (57, 79, 99, 127, 178 mm)
Stroke Lengths:
 3, 5.5, 6, 8, 10, 12, 14, 18 in (76, 140, 152, 203, 254, 305, 356, 457 mm)
Maximum Speed: up to 33.33 in/s (846.67 mm/s)
Maximum Force: up to 25,000 lbf-in (111,200 N)


Print

|

Back to Top

Product Specifications



GS20 Performance Specifications

GS20 PERFORMANCE SPECIFICATIONS

Model

Frame
Size
in (mm)

Sroke
in (mm)

Screw
Lead
in (mm)

Force Rating
1 / 2 / 3 Stack
lb (N)

Max
Velocity
in/sec
(mm/sec)

Approx* Cont Motor Torque
1 / 2 / 3 Stack
lb-in (Nm)

Maximum
Static Load
lb (N)

Armature
Inertia
lb-in-S2
(KG-M2)

Dynamic Load
Rating
lb (N)

Weight
(Approx)
lb (KG)

GS20-0301

2.25
(57)

3
(76)

0.1
(2.54)

367/578/NA
(1632/2571/NA)

8.33
(211.67)

7.3/11.5/NA
(0.82/1.30/NA)

1000
(4448)

0.00101
(0.000114)

2075
(9230)

5.5
(2.5)

GS20-0302

2.25
(57)

3
(76)

0.2
(5.08)

183/289/NA
(814/1286/NA)

16.77
(423.33)

7.3/11.5/NA
(0.82/1.30/NA)

1000
(4448)

0.00101
(0.000114)

1540
(6850)

5.5
(2.5)

GS20-0304

2.25
(57)

3
(76)

0.4
(10.16)

92/145/NA
(409/645/NA)

33.33
(846.67)

7.3/11.5/NA
(0.82/1.30/NA)

1000
(4448)

0.00101
(0.000114)

1230
(5471)

5.5
(2.5)

GS20-0601

2.25
(57)

6
(152)

0.1
(2.54)

367/578/NA
(1632/2571/NA)

8.33
(211.67)

7.3/11.5/NA
(0.82/1.30/NA)

1000
(4448)

0.00114
(0.000129)

2075
(9230)

9.5
(4.3)

GS20-0602

2.25
(57)

6
(152)

0.2
(5.08)

183/289/385
(814/1286/1713)

16.67
(423.33)

7.3/11.5/15.3
(0.82/1.30/1.73)

1000
(4448)

0.00114
(0.000129)

1540
(6850)

9.5
(4.3)

GS20-0604

2.25
(57)

6
(152)

0.4
(10.16)

92/145/192
(409/645/854)

33.33
(846.67)

7.3/11.5/15.3
(0.82/1.30/1.73)

1000
(4448)

0.00114
(0.000129)

1230
(5471)

9.5
(4.3)

GS20-1201

2.25
(57)

12
(304)

0.1
(2.54)

367/578/NA
(1632/2571/NA)

8.33
(211.67)

7.3/11.5/NA
(0.82/1.30/NA)

1000
(4448)

0.00143
(0.000162)

2075
(9230)

17.5
(8)

GS20-1202

2.25
(57)

12
(304)

0.2
(5.08)

183/289/385
(814/1286/1713)

16.67
(423.33)

7.3/11.5/15.3
(0.82/1.30/1.73)

1000
(4448)

0.00143
(0.000162)

1540
(6850)

17.5
(8)

GS20-1204

2.25
(57)

12
(304)

0.4
(10.16)

92/145/192
(409/645/854)

33.33
(846.67

7.3/11.5/15.3
(0.82/1.30/1.73)

1000
(4448)

0.00143
(0.000162)

1230
(5471)

17.5
(8)

Printable view

GS30 Performance Specifications

GS30 PERFORMANCE SPECIFICATIONS



Model

Frame Size
In (mm)

Stroke
In (mm)

Screw Lead
 In (mm)

Force Rating
1 / 2 / 3 Stack
lb (N


Max
Velocity
In/sec
(mm/sec)

Approx*
Cont Motor
Torque
1 / 2 / 3 Stack
Lb-in (Nm)

Maximum
Static
Load
Lb (N)

Armature
Inertia
Lb-in-s2
(Kg-m2)

Dynamic Load Rating
Lb (N)

Weight
(approx)
 lb (Kg)

GS30-0302

3.125
(79)

3
(76)

0.2
(5.08)

415/674/NA
(1846/2998/NA)

10
(254)

16.5/26.8/NA
(1.86/3.03/NA)

2000
(8896)

0.00319
(0.00036)

5800
(25798)

9.5
(4.3)

GS30-0305

3.125
(79)

3
(76)

0.5
(12.7)

166/269/NA
(738/1197/NA)

25
(635)

16.5/26.8/NA
(1.86/3.03/NA)

2000
(8896)

0.00319
(0.00036)

4900
(21795)

9.5
(4.3)

GS30-0602

3.125
(79)

5.5
(140)

0.2
(5.08)

415/674/905
(1846/2998/4026)

10
(254)

16.5/26.8/36
(1.86/3.03/4.07)

2000
(8896)

0.00361
(0.000408)

5800
(25798)

11.5
(5.2)

GS30-0605

3.125
(79)

5.5
(140)

0.5
(12.7)

166/269/362
(738/1197/1610)

25
(635)

16.5/26.8/36
(1.86/3.03/4.07)

2000
(8896)

0.00361
(0.000408)

4900
(21795)

11.5
(5.2)

GS30-1002

3.125
(79)

10
(254)

0.2
(5.08)

415/674/905
(1846/2998/4026)

10
(254)

16.5/26.8/36
(1.86/3.03/4.07)

2000
(8896)

0.00416
(0.00047)

5800
(25798)

19
(8.6)

GS30-1005

3.125
(79)

10
(254)

0.5
(12.7)

166/269/362
(738/1197/1610)

25
(635)

16.5/26.8/36
(1.86/3.03/4.07)

2000
(8896)

0.00416
(0.00047)

4900
(21795)

19
(8.6)

GS30-1402

3.125
(79)

14
(356)

0.2
(5.08)

415/674/905
(1846/2998/4026)

10
(254)

16.5/26.8/36
(1.86/3.03/4.07)

2000
(8896)

0.00473
(0.000534)

5800
(25798)

22
(10)

GS30-1405

3.125
(79)

14
(356)

0.5
(12.7)

166/269/362
(738/1197/1610)

25
(635)

16.5/26.8/36
(1.86/3.03/4.07)

2000
(8896)

0.00473
(0.000534)

4900
(21795)

22
(10)

GS30-1802

3.125
(79)

18
(457)

0.2
(5.08)

415/674/905
(1846/2998/4026)

10
(254)

16.5/26.8/36
(1.86/3.03/4.07)

2000
(8896)

0.00533
(0.000602)

5800
(25798)

25
(11.3)

GS30-1805

3.125
(79)

18
(457)

0.5
(12.7)

166/269/362
(738/1197/1610)

25
(635)

16.5/26.8/36
(1.86/3.03/4.07)

2000
(8896)

0.00533
(0.000602)

4900
(21795)

25
(11.3)

Printable view

GS40 Performance Specifications

GS40 PERFORMANCE SPECIFICATIONS



Model

Frame
Size
In (mm)

Stroke
In (mm)

Screw
Lead
In (mm)

Force
Rating
1 / 2 / 3 Stack
lb (N)

Max
Velocity
In/sec
(mm/sec)

Approx*
Cont Motor
Torque
1 / 2 / 3 Stack
lb-in (Nm)

Maximum
Static Load
lb (N)

Armature
Inertia
lb-in-s2
(Kg-m2)

Dynamic Load
Rating
lb (N)

Weight
(approx)
lb (Kg)

GS40-0602

3.9
(99)

6
(152)

0.2
(5.08)

1196/1983/NA
(5320/8821/NA)

10
(254)

47.6/78.9/NA
(5.38/8.91/NA)

5000
(22400)

0.0152
(0.001718)

8300
(36920)

20
(9.1)

GS40-0605

3.9
(99)

6
(152)

0.5
(12.7)

479/793/NA
(2131/3527/NA

25
(635)

47.6/78.9/NA
(5.38/8.91/NA)

5000
(22400)

0.0152
(0.001718)

7030
(31271)

20
(9.1)

GS40-0802

3.9
(99)

8
(203)

0.2
(5.08)

1196/1983/2692
(5320/8821/11975)

10
(254)

47.6/78.9/107.1
(5.38/8.91/12.1)

5000
(22400)

0.0163
(0.001845)

8300
(36920)

24
(10.9)

GS40-0805

3.9
(99)

8
(203)

0.5
(12.7)

479/793/1077
(2131/3527/4791

25
(635)

47.6/78.9/107.1
(5.38/8.91/12.1)

5000
(22400)

0.0163
(0.001845)

7030
(31271)

24
(10.9)

GS40-1202

3.9
(99)

12
(305)

0.2
(5.08)

1196/1983/2692
(5320/8821/11975)

10
(254)

47.6/78.9/107.1
(5.38/8.91/12.1)

5000
(22400)

0.0186
(0.002101)

8300
(36920)

32
(14.5)

GS40-1205

3.9
(99)

12
(305)

0.5
(12.7)

479/793/1077
(2131/3527/4791

25
(635)

47.6/78.9/107.1
(5.38/8.91/12.1)

5000
(22400)

0.0186
(0.002101)

7030
(31271)

32
(14.5)

GS40-1802

3.9
(99)

18
(457)

0.2
(5.08)

1196/1983/2692
(5320/8821/11975)

10
(254)

47.6/78.9/107.1
(5.38/8.91/12.1)

5000
(22400)

0.0220
(0.002483)

8300
(36920)

44
(20)

GS40-1805

3.9
(99)

18
(457)

0.5
(12.7)

479/793/1077
(2131/3527/4791

25
(635)

47.6/78.9/107.1
(5.38/8.91/12.1)

5000
(22400)

0.0220
(0.002483)

7030
(31271)

44
(20)

Printable view

GS45 Performance Specifications

GS45 PERFORMANCE SPECIFICATIONS

Model

Frame Size in
(mm)

Stroke
in (mm)

Screw Lead
in (mm)

Force* Rating
lb (N)
1/2 stack

Max Velocity
in/sec
(mm/sec)

Cont Motor Torque
lb-in (N-m)
1/2 Stack

Max Static Load lb
(N)

Armature Inertia
lb-in-s2
(Kg-m2)

Dynamic Load Rating
lb (N)

Weight   (approx.)
lb (Kg)

GS45-0601

5.0
(127)

6
(152)

0.1
(2.54)

3760/5894
(16725/26218)

4
(101.6)

74/116
(8.36/13.1)

10000
(44800)

0.0299
(0.003378)

12674
(56377)

31.5
(14.3)

GS45-0602

5.0
(127)

6
(152)

0.2
(5.08)

1860/2916
(8274/12971)

8
(203)

74/116
(8.36/13.1)

10000
(44800)

0.0299
(0.003378)

12500
(55600)

31.5
(14.3)

GS45-0605

5.0
(127)

6
(152)

0.5
(12.7)

774/1213
(3309/5396)

20
(508)

74/116
(8.36/13.1)

10000
(44800)

0.0299
(0.003378)

10600
(47150)

31.5
(14.3)

GS45-0610

5.0
(127)

6
(152)

1.0
(25.4)

372/583
(1655/2593)

40
(1016)

74/116
(8.36/13.1)

10000
(44800)

0.0299
(0.003378)

9500
(42260)

31.5
(14.3)

GS45-1001

5.0
(127)

10
(254)

0.1
(2.54)

3760/5894
(16725/26218)

4
(101.6)

74/116
(8.36/13.1)

10000
(44800)

0.0353
(0.003988)

12674
(56377)

36.5
(16.5)

GS45-1002

5.0
(127)

10
(254)

0.2
(5.08)

1860/2916
(8274/12971)

8
(203)

74/116
(8.36/13.1)

10000
(44800)

0.0353
(0.003988)

12500
(55600)

36.5
(16.5)

GS45-1005

5.0
(127)

10
(254)

0.5
(12.7)

774/1213
(3309/5396)

20
(508)

74/116
(8.36/13.1)

10000
(44800)

0.0353
(0.003988)

10600
(47150)

36.5
(16.5)

GS45-1010

5.0
(127)

10
(254)

1.0
(25.4)

372/583
(1655/2593)

40
(1016)

74/116
(8.36/13.1)

10000
(44800)

0.0353
(0.003988)

9500
(42260)

36.5
(16.5)

GS45-1402

5.0
(127)

14
(356)

0.2
(5.08)

1860/2916
(8274/12971)

8
(203)

74/116
(8.36/13.1)

10000
(44800)

0.0408
(0.004610)

12500
(55600)

41
(18.7)

GS45-1405

5.0
(127)

14
(356)

0.5
(12.7)

774/1213
(3309/5396)

20
(508)

74/116
(8.36/13.1)

10000
(44800)

0.0408
(0.004610)

10600
(47150)

41
(18.7)

GS45-1802

5.0
(127)

18
(457)

0.2
(5.08)

1860/2916
(8274/12971)

8
(203)

74/116
(8.36/13.1)

10000
(44800)

0.0468
(0.005288)

12500
(55600)

47
(21.4)

GS45-1805

5.0
(127)

18
(457)

0.5
(12.7)

774/1213
(3309/5396)

20
(508)

74/116
(8.36/13.1)

10000
(44800)

0.0468
(0.005288)

10600
(47150)

47
(21.4)

Printable view

GS60 Performance Specifications

GS60 PERFORMANCE SPECIFICATIONS

Model

Frame Size
in (mm)

Stroke
in (mm)

Screw Lead
in (mm)

Force* Rating
lb (N)

Max
Velocity
in/sec
(mm/sec)

Cont
Motor Torque
lb-in (Nm)

Max Static Load
lb (N)

Armature
Inertia
lb-in-s2
(Kg-m2)

Dynamic Load
Rating
lb (N)

Weight (approx.)
lb (Kg)

GS60-1003

7.0
(178)

10
(254)

0.25
(6.35)

7942
(35328)

10
(254)

395
(44.6)

25000
(111200)

0.1943
(0.021959)

25300
(112535)

101
(46)

GS60-1005

7.0
(178)

10
(254)

0.5
(12.7)

3971
(17664)

20
(508)

395
(44.6)

25000
(111200)

0.1943
(0.021959)

22800
(101415)

101
(46)

GS60-1010

7.0
(178)

10
(254)

1.0
(25.4)

1985
(8830)

40
(1018)

395
(44.6)

25000
(111200)

0.1943
(0.021959)

21200
(94298)

101
(46)

Printable view

Resources For GS Series Actuators

Resources
