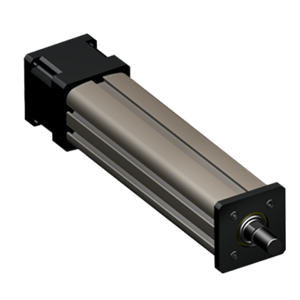

The I Series is an Obsolete Product, No Longer Available. Need a comparable replacement, try our KX Series actuators!
| Models: |
IM/IX20, IM/IX30, IM/IX40 |
| Frame Sizes: |
2, 3, 4 in (51, 76, 102 mm) |
| Screw Lead: |
0.1, 0.2, 0.4, 0.5, 0.75 in (2.54, 5.08, 10.16, 12.7, 19.05 mm) |
| Linear Speeds: |
up to 33.33 in/s (847 mm/s) |
| Continuous Thrust Capacity: |
up to 3,966 lbf (up to 17,642 N) |
| Standards/Ratings: |
UL Class 180H insulation, IP54S (IM) IP65S (IX) |
|
Back to Top
|
Product |
Approx. |
Continuous |
Speed at |
Life at |
Screw lead |
Allowable |
Rated input |
|---|---|---|---|---|---|---|---|
|
IM20-xx01 |
2 (51) |
578 (2571) |
8.33 (212) |
2.93 (74.4) |
0.1 (2.54) |
11.5 (1.3) |
5000 |
|
IM20-xx02 |
2 (51) |
289 (1286) |
16.67 (423) |
13 (332.7) |
0.2 (5.08) |
11.5 (1.3) |
5000 |
|
IM20-xx04 |
2 (51) |
145 (645) |
33.33 (847) |
44.4 (1123.6) |
0.4 (10.16) |
11.5 (1.3) |
5000 |
|
IX20-xx01 |
2 (51) |
578 (2571) |
8.33 (212) |
7.8 (198.2) |
0.1 (2.54) |
11.5 (1.3) |
5000 |
|
IX20-xx02 |
2 (51) |
385 (1713) |
16.67 (423) |
52.8 (1341.4) |
0.2 (5.08) |
15.3 (1.73) |
5000 |
|
IX20-xx04 |
2 (51) |
192 (854) |
33.33 (847) |
141 (3587) |
0.4 (10.16) |
15.3 (1.73) |
5000 |
Printable view
|
Product |
Approx. |
Continuous |
Speed at |
Life at |
Screw lead |
Allowable |
Rated input |
|---|---|---|---|---|---|---|---|
|
IM30-xx01 |
3 (76) |
1347 (5992) |
5 (127) |
2.06 (52.5) |
0.1 (2.54) |
26.8 (3.03) |
3000 |
|
IM30-xx02 |
3 (76) |
674 (2998) |
10 (254) |
7.0 (177.6) |
0.2 (5.08) |
26.8 (3.03) |
3000 |
|
IM30-xx05 |
3 (76) |
269 (1197) |
25 (635) |
347.6 (8829 |
0.5 (12.7) |
26.8 (3.03) |
3000 |
|
IX30-xx01 |
3 (76) |
1347 (5992) |
5 (127) |
5.5 (139.8) |
0.1 (2.54) |
26.8 (3.03) |
3000 |
|
IX30-xx02 |
3 (76) |
905 (4026) |
10 (254) |
21.4 (544.9) |
0.2 (5.08) |
36.0 (4.07) |
3000 |
|
IX30-xx05 |
3 (76) |
362 (1610) |
25 (635) |
1059 (26900) |
0.5 (12.7) |
36.0 (4.07) |
3000
|
Printable view
|
Product |
Approx. |
Continuous |
Speed at |
Life at |
Screw lead |
Allowable input torque* |
Rated input |
|---|---|---|---|---|---|---|---|
|
IM40-xx01 |
4 (102) |
3966 (17642) |
5 (127) |
0.37 (9.35) |
0.1 (2.54) |
78.9 (8.91) |
3000 |
|
IM40-xx02 |
4 (102) |
1983 (8821) |
10 (254) |
2.11 (53.73) |
0.2 (5.08) |
78.9 (8.91) |
3000 |
|
IM40-xx05 |
4 (102) |
793 (3527) |
25 (635) |
32.6 (829) |
0.5 (12.7) |
78.9 (8.91) |
3000 |
|
IM40-xx08 |
4 (102) |
528 (2351) |
37.5 (952) |
187.8 (4770) |
0.75 (19.05) |
78.9 (8.91) |
3000 |
|
IX40-xx01 |
4 (102) |
3966 (17642) |
5 (127) |
1.0 (25.4) |
0.1 (2.54) |
78.9 (8.91) |
3000 |
|
IX40-xx02 |
4 (102) |
2692 (11975) |
10 (254) |
6.28 (159.46) |
0.2 (5.08) |
107.1 (12.1) |
3000 |
|
IX40-xx05 |
4 (102) |
1077 (4791) |
25 (635) |
96.7 (2458) |
0.5 (12.7) |
107.1 (12.1) |
3000 |
|
IX40-xx08 |
4 (102) |
718 (3193) |
37.5 (952) |
515 (13084) |
0.75 (19.05) |
107.1 (12.1) |
3000 |
