| Models | Frame Size in (mm) | Peak Force lbf (N) | Continuous Force lbf (N) | Max Speed in/s (mm/s) |
| TTX060 | 2.36 (60) | DC - 1,038 (4,618) | DC - 552 (2,566) | DC - 33 (847) |
| TTX080 | 3.15 (80) | AC - 2,650 (11,800) DC - 2,270 (9,940) |
AC - 1,325 (5,900) DC - 1,115 (4,970) |
AC - 25 (635) DC - 20 (508) |

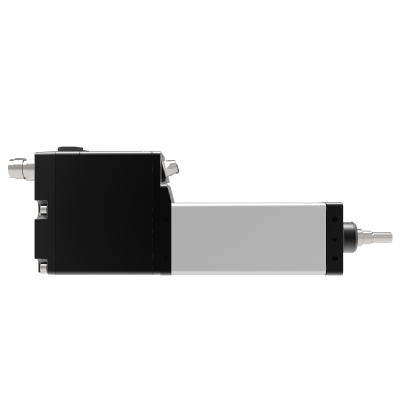

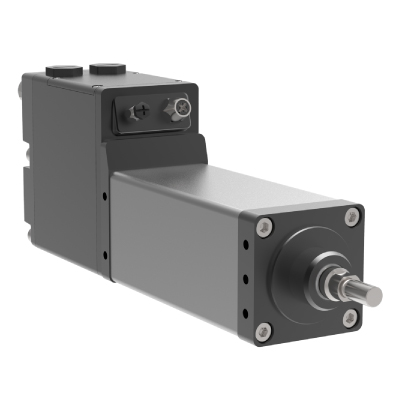

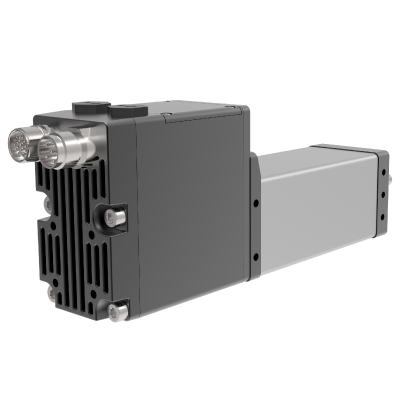

Built on the unique GTX Series platform, the smart Tritex TTX Series linear actuators integrate a servo drive / controller, brushless servo motor, and an inverted roller screw actuator in one compact, environmentally sealed package. A complete decentralized solution eliminates much the control cabinet and cabling headaches associated with typical centralized control architectures, speeding installation, and lowering total cost of ownership. The Tritex TTX Series makes an ideal solution for machine retrofits and single axis applications.
Related Industries
|

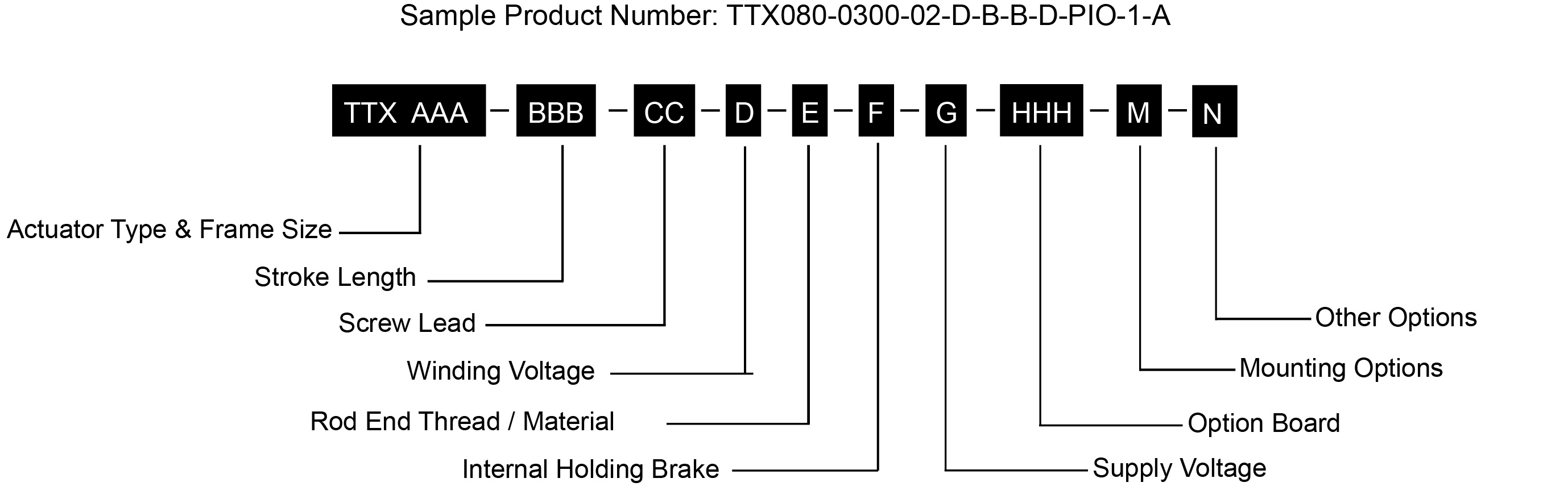

AAA = Actuator Frame Size |
F = Internal Holding Brake |
NOTES:
1. Switches sold separately
2. Available option. May add lead time.
* Some options are not available with every configuration. For options or specials not listed above contact your local Exlar representative.
Anti-Rotate, External
This assembly restricts the actuator output rod from rotating when the load is not held by another method. Shorter actuators have a single anti-rotation mechanism; longer lengths have a mechanism on both sides.
Front Mounting Flange, Metric
Front mounting flange, includes thru-holes for face-mounting
Limit Switch Housing/ Anti-Rotate Assembly
External travel switches indicate travel to the controller and are adjustable for either the home or end position. Switches not included.
Rear Clevis, Metric
Rear clevis mount, allows actuator to pivot while in motion
Splined Rod (Internal Anti-Rotate)
A ball spline shafting main rod with a ball spline nut that replaces the standard front seal and bushing assembly. This rod restricts rotation without the need for an external mechanism. The rod diameter will be the closest metric equivalent to our standard rod sizes. Since this option is NOT sealed, it is not suitable for environments in which contaminants may enter the actuator.
Stainless Steel Rod Option
All thread options on the GTX product line are available in 17-4 stainless steel. This option provides improved corrosion resistance for the main rod of the actuator. This option can be beneficial in applications where the rod could be exposed to harsh chemicals or outdoor environments.
Tapped Face, Metric
Tapped mounting holes in front flange face, allows face-mounting of actuator
|
Back to Top

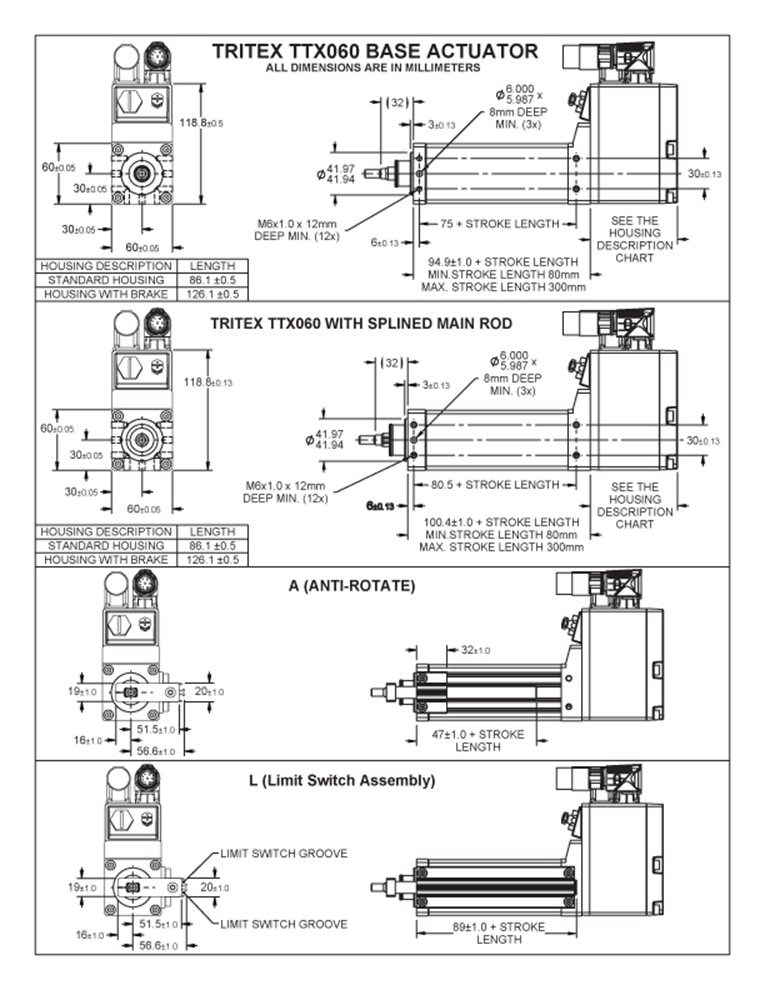

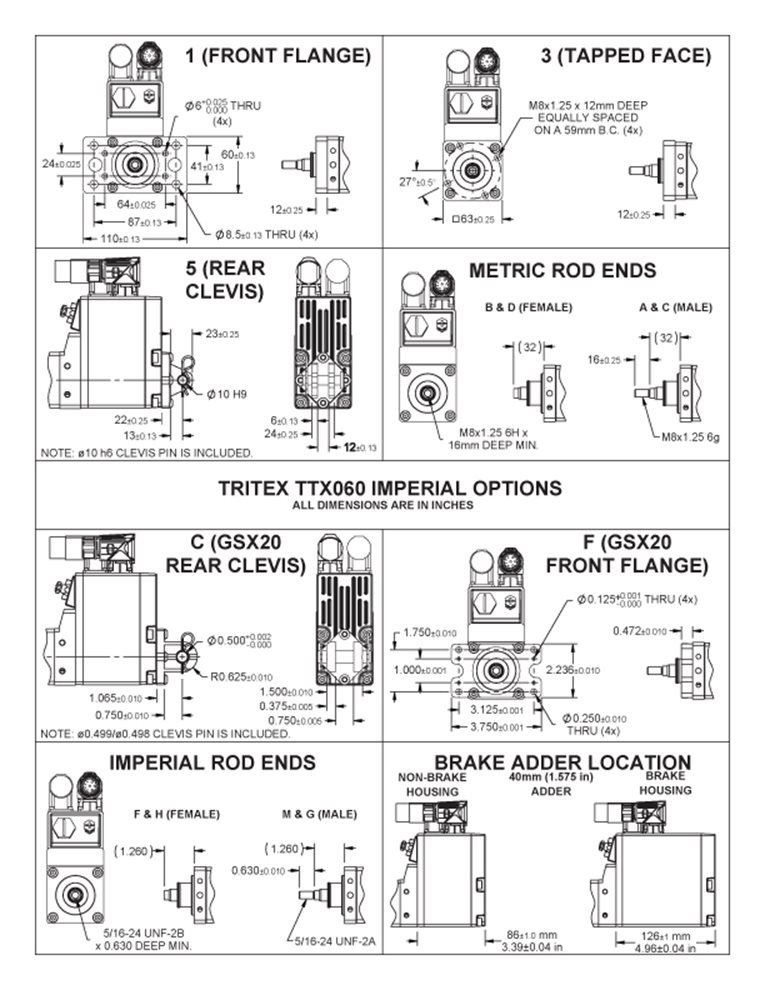

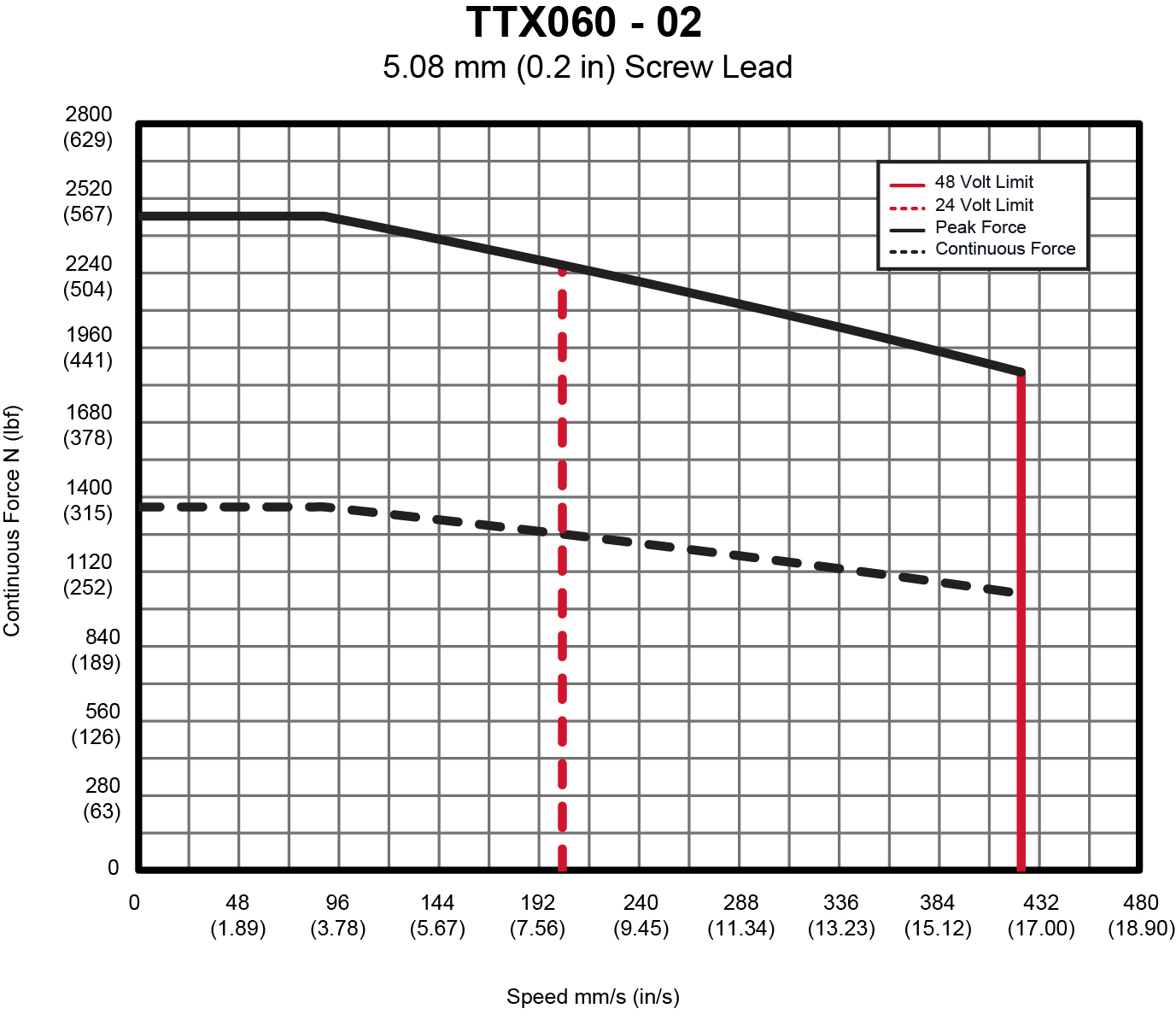

| STROKE MM (IN) | SCREW LEAD MM (IN) | CONTINUOUS FORCE RATING N (LBF) | PEAK FORCE RATING N (LBF) | MAX VELOCITY MM/S (IN/S) | DYNAMIC LOAD RATING N (LBF) | ARMATURE INERTIA KG-M^2 (IN-LB-S^2) | MAXIMUM CONTINUOUS INPUT CURRENT | |
|---|---|---|---|---|---|---|---|---|
| D (Vdc) | D (Vdc) | D (Vdc) | D (Vdc) Arms | |||||
| TTX060-080-01 | 80 (3.15) | 2.54 (0.1) | 2,566 (577) | 4,618 (1,038) | 202 (8.3) | 9,230 (2,075) | 0.00007367 (0.000652) | 18.0 |
| TTX060-080-02 | 5.08 (0.2) | 1,363 (306) | 2,454 (552) | 423 (16.7) | 6,850 (1,540) | |||

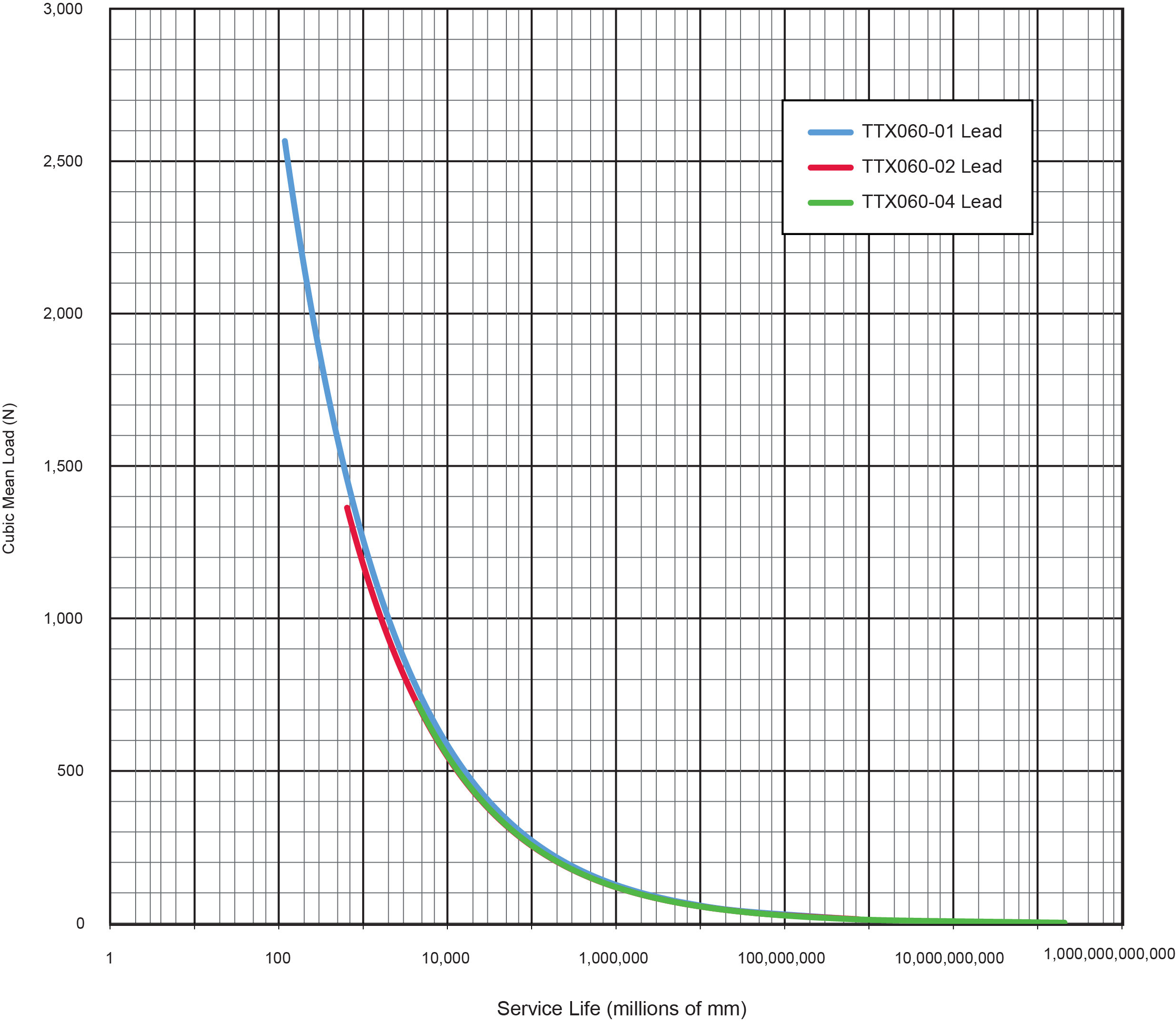

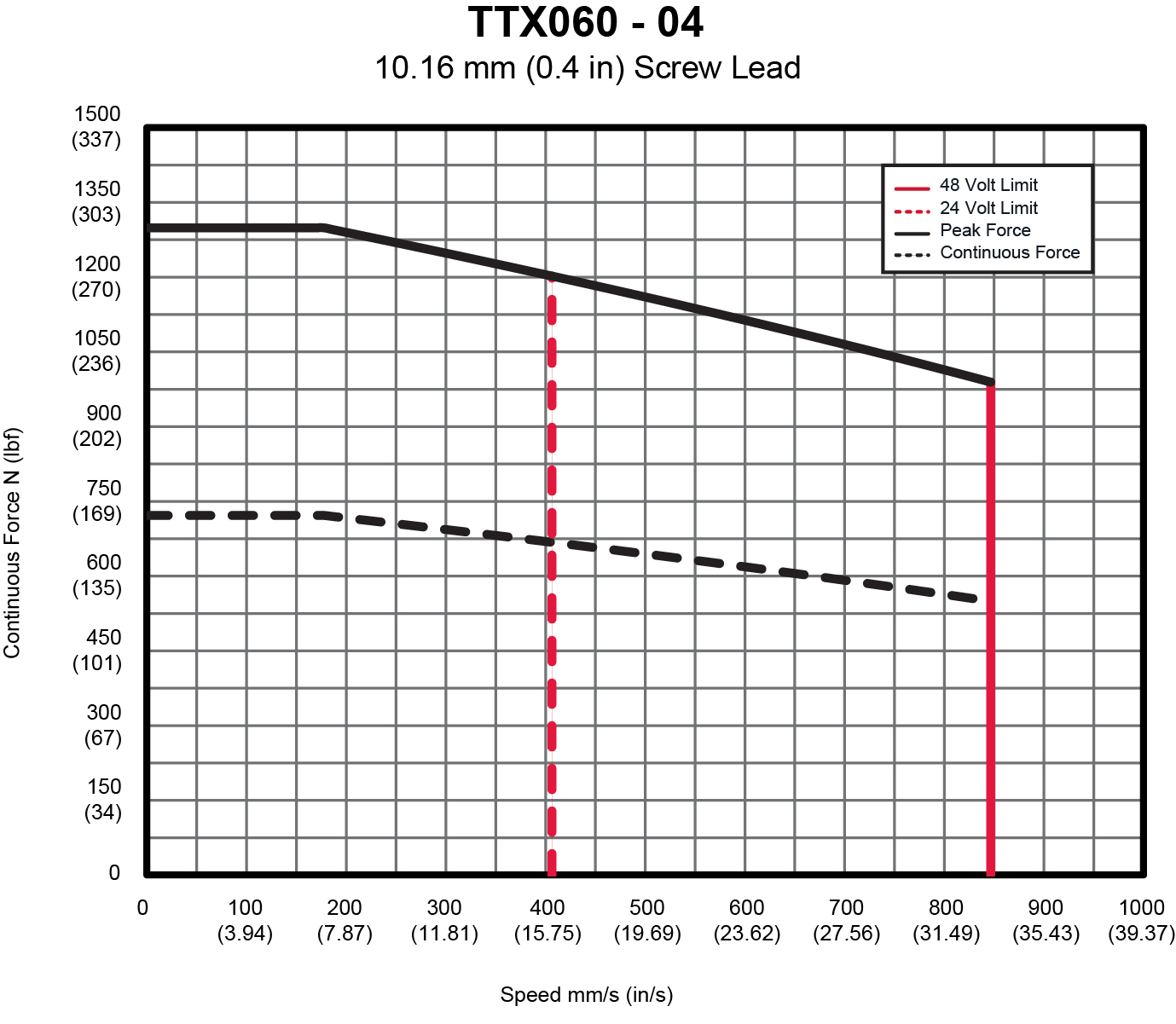

| TTX060-080-04 | 10.16 (0.4) | 722 (162) | 1,299 (292) | 847 (33.3) | 5,471 (1,230) | |||
| TTX060-150-01 | 150 (5.9) |
2.54 (0.1) | 2,566 (577) | 4,618 (1,038) | 202 (8.3) | 9,230 (2,075) | 0.00008689 (0.000769) | |
| TTX060-150-02 | 5.08 (0.2) | 1,363 (306) | 2,454 (552) | 423 (16.7) | 6,850 (1,540) | |||
| TTX060-150-04 | 10.16 (0.4) | 722 (162) | 1,299 (292) | 847 (33.3) | 5,471 (1,230) | |||
| TTX060-300-01 | 300 (11.8) |
2.54 (0.1) | 2,566 (577) | 4,618 (1,038) | 202 (8.3) | 9,230 (2,075) | 0.00011537 (0.001021) | |
| TTX060-300-02 | 5.08 (0.2) | 1,363 (306) | 2,454 (552) | 423 (16.7) | 6,850 (1,540) | |||
| TTX060-300-04 | 10.16 (0.4) | 722 (162) | 1,299 (292) | 847 (33.3) | 5,471 (1,230) |
Specifications subject to change without notice.
Test data derived using NEMA recommended aluminum heatsink 10" x 10" x 3/8" at 25 °C ambient.
Maximum velocities listed at maximum voltages
|
Description |
Weight kg (lb) |
|
TTX060-080 |
3.64 (8.0) |
|
TTX060-150 |
4.13 (9.09) |
|
TTX060-300 |
5.20 (11.43) |
|
Brake Adder |
0.65 (1.42) |
|
Front Flange (1) |
0.4 (0.89) |
|
Tapped Face (3) |
0.25 (.54) |
|
Rear Clevis (5) |
0.21 (0.46) |
|
Imperial Flange (F) |
0.3 (0.67) |
|
Imperial Clevis (C) |
0.33 (0.72) |
|
Anti Rotate (80 mm stroke) |
0.46 (1.0) |
|
Anti Rotate (150 mm stroke) |
0.54 (1.2) |
|
Anti Rotate (300 mm stroke) |
0.72 (1.6) |
|
Limit Switch Assembly (80 mm stroke) |
0.67 (1.5) |
|
Limit Switch Assembly (150 mm stroke) |
0.81 (1.8) |
|
Limit Switch Assembly (300 mm stroke) |
1.11 (2.5) |
|
Brake Holding Torque (minimum) |
Nm |
2.5 |
|
lbf-in |
22 |
|
|
Brake Voltage |
Vdc |
24 (-10%/+6%) |
|
Nominal Brake Current at 24 Vdc |
A |
0.46 |
|
Brake Engage/Disengage Time (typical) |
ms |
10/25 |
Printable view

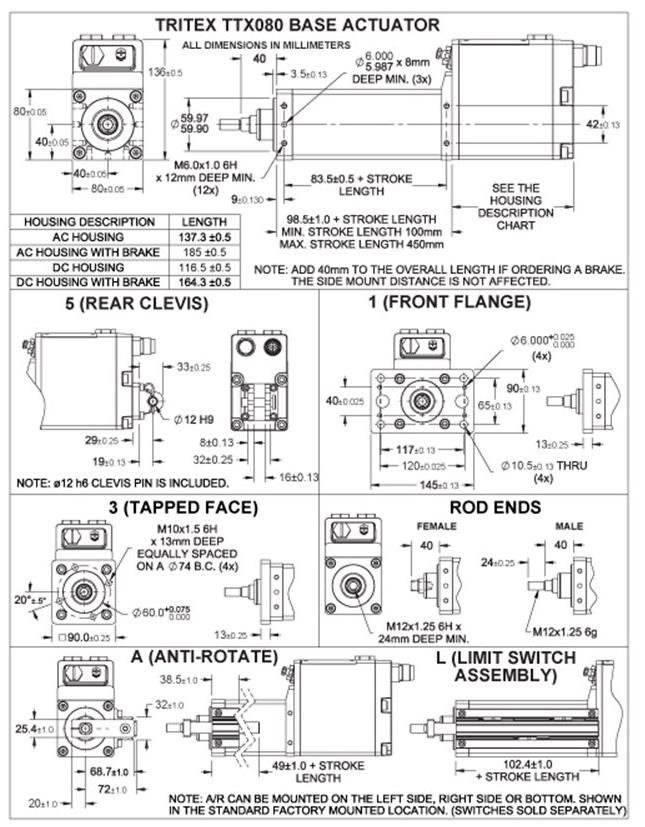

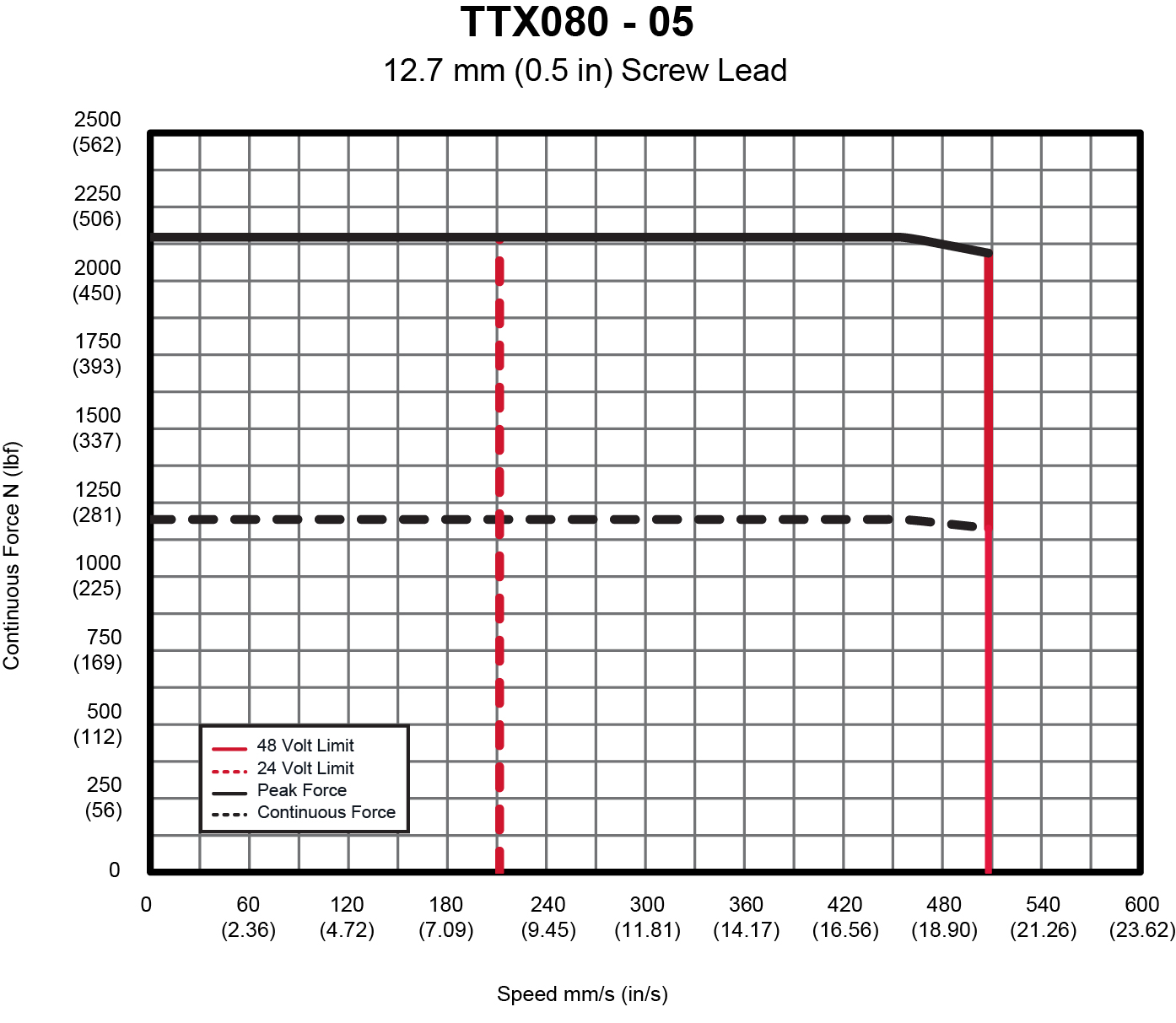

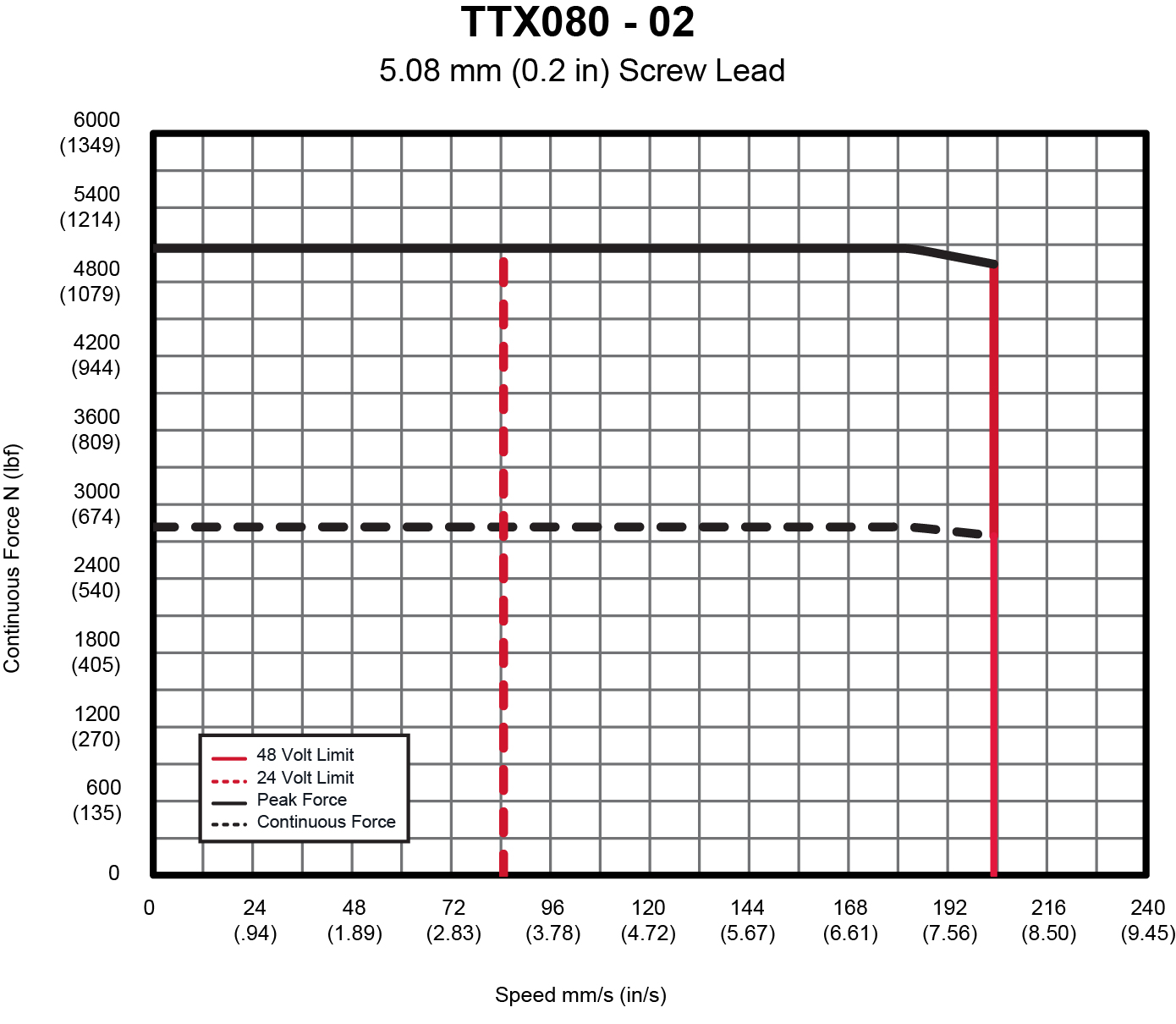

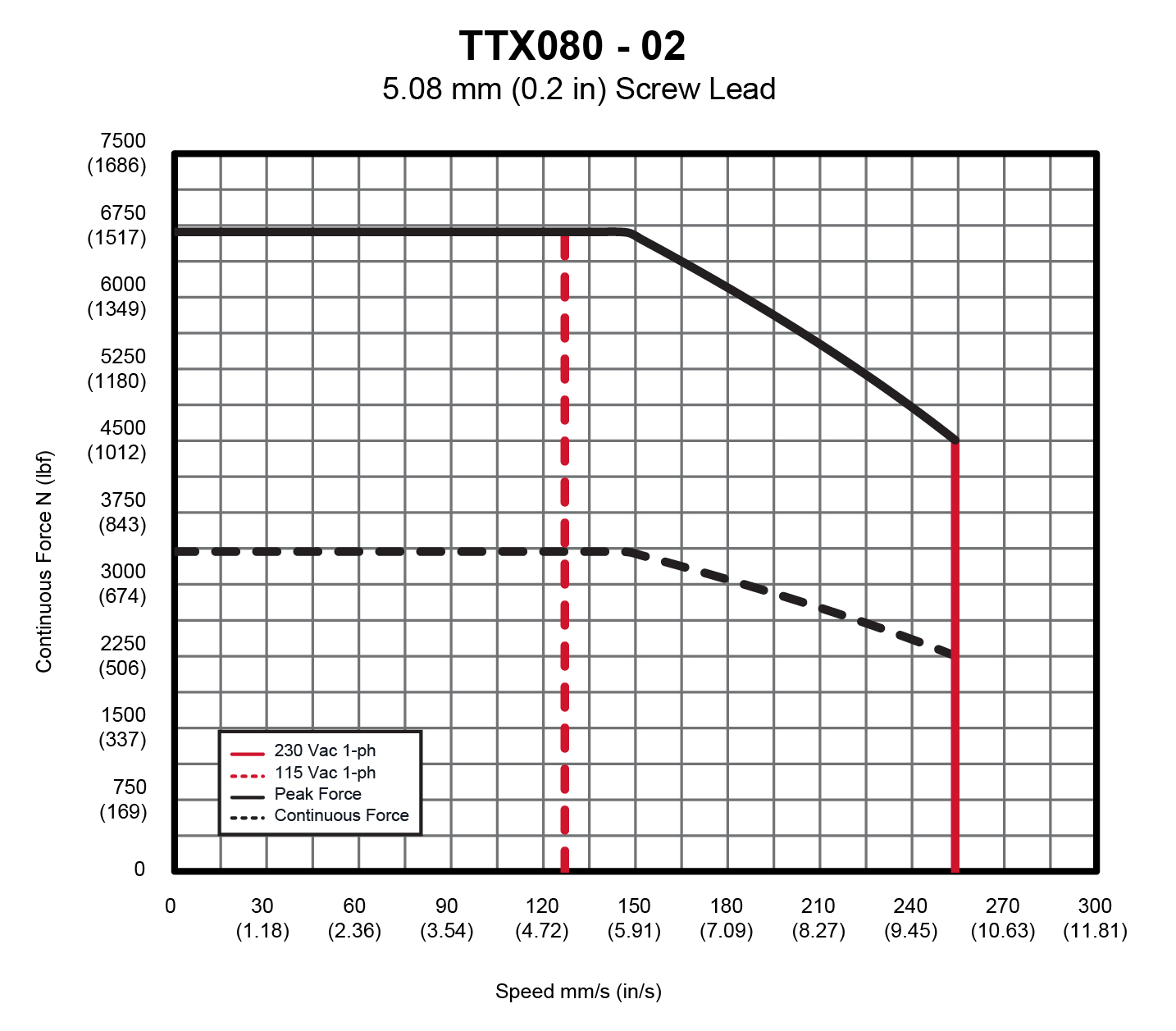

| STROKE MM (IN) | SCREW LEAD MM (IN) | CONTINUOUS FORCE RATING N (LBF) | PEAK FORCE RATING N (LBF) | MAX VELOCITY MM/S (IN/S) | DYNAMIC LOAD RATING N (LBF) | ARMATURE INERTIA KG-M^2 (IN-LB-S^2) | MAXIMUM CONTINUOUS INPUT CURRENT | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications subject to change without notice. Test data derived using NEMA recommended aluminum heatsink 10" x 10" x 3/8" at 25°C ambient. Maximum velocities listed at maximum voltages | ||||||||||||
| 4 (Vac) | D (Vdc) | 4 (Vac) | D (Vdc) | 4 (Vac) | D (Vdc) | A (Vac) Arms | D (Vdc) Arms | |||||

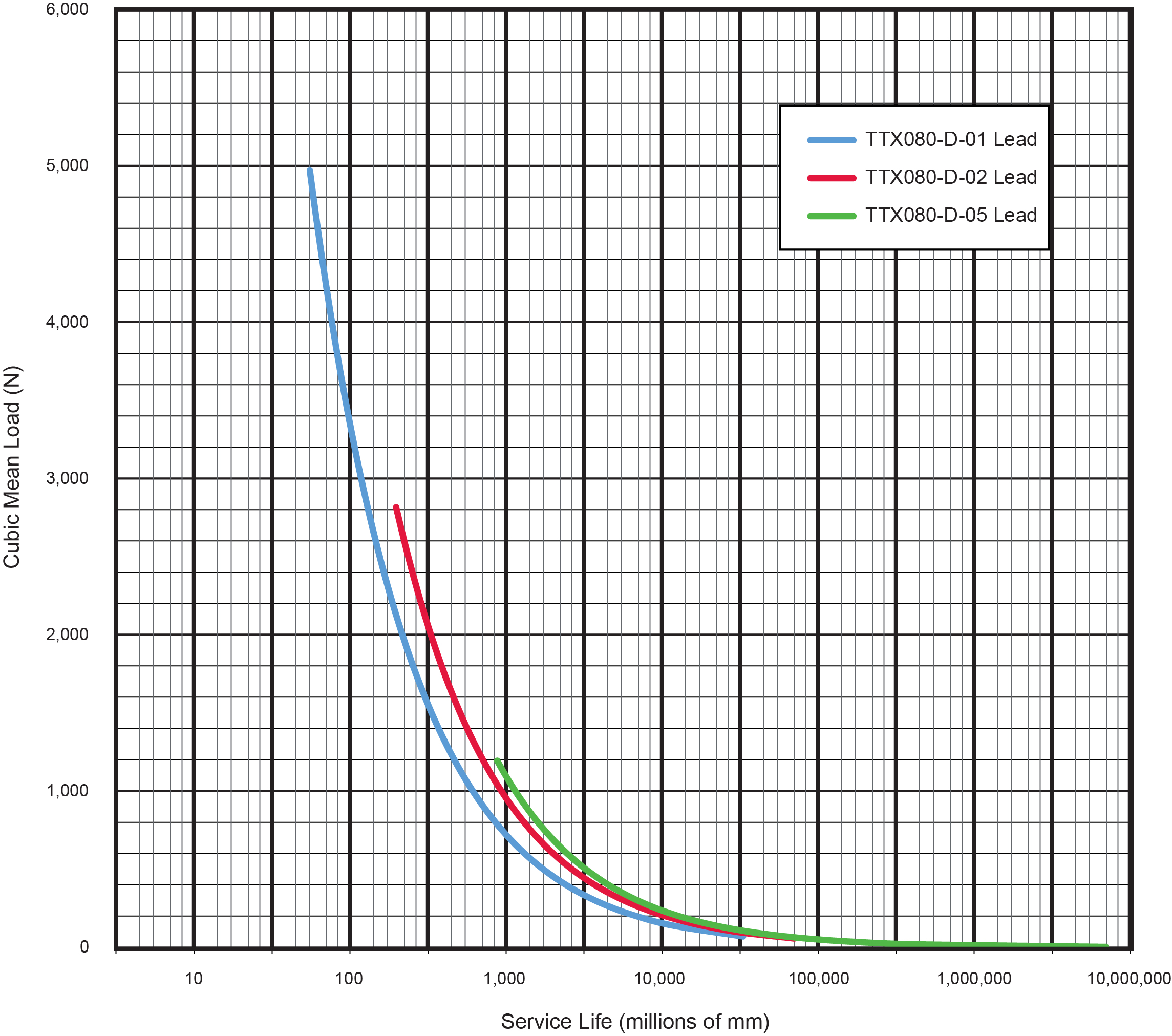

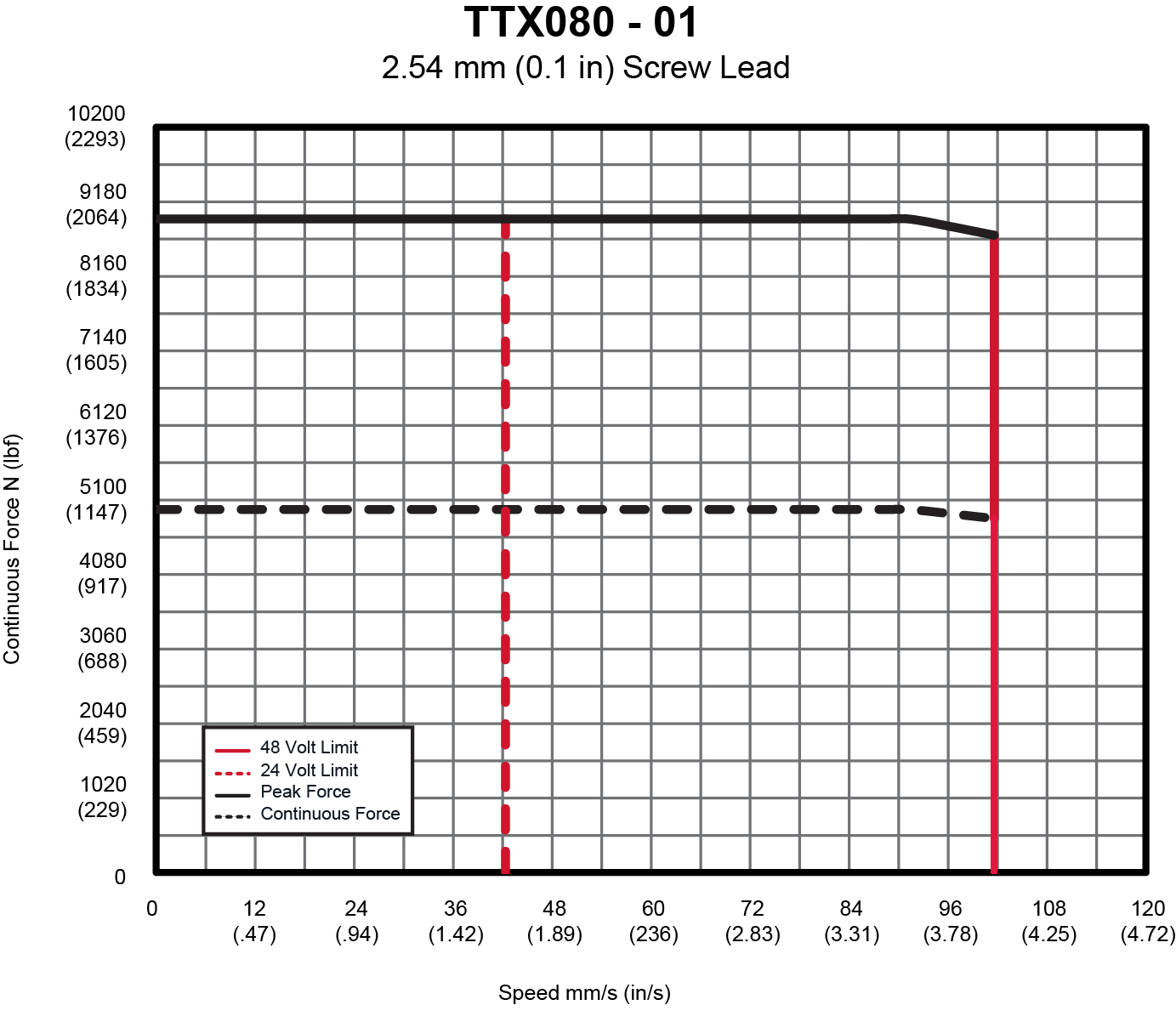

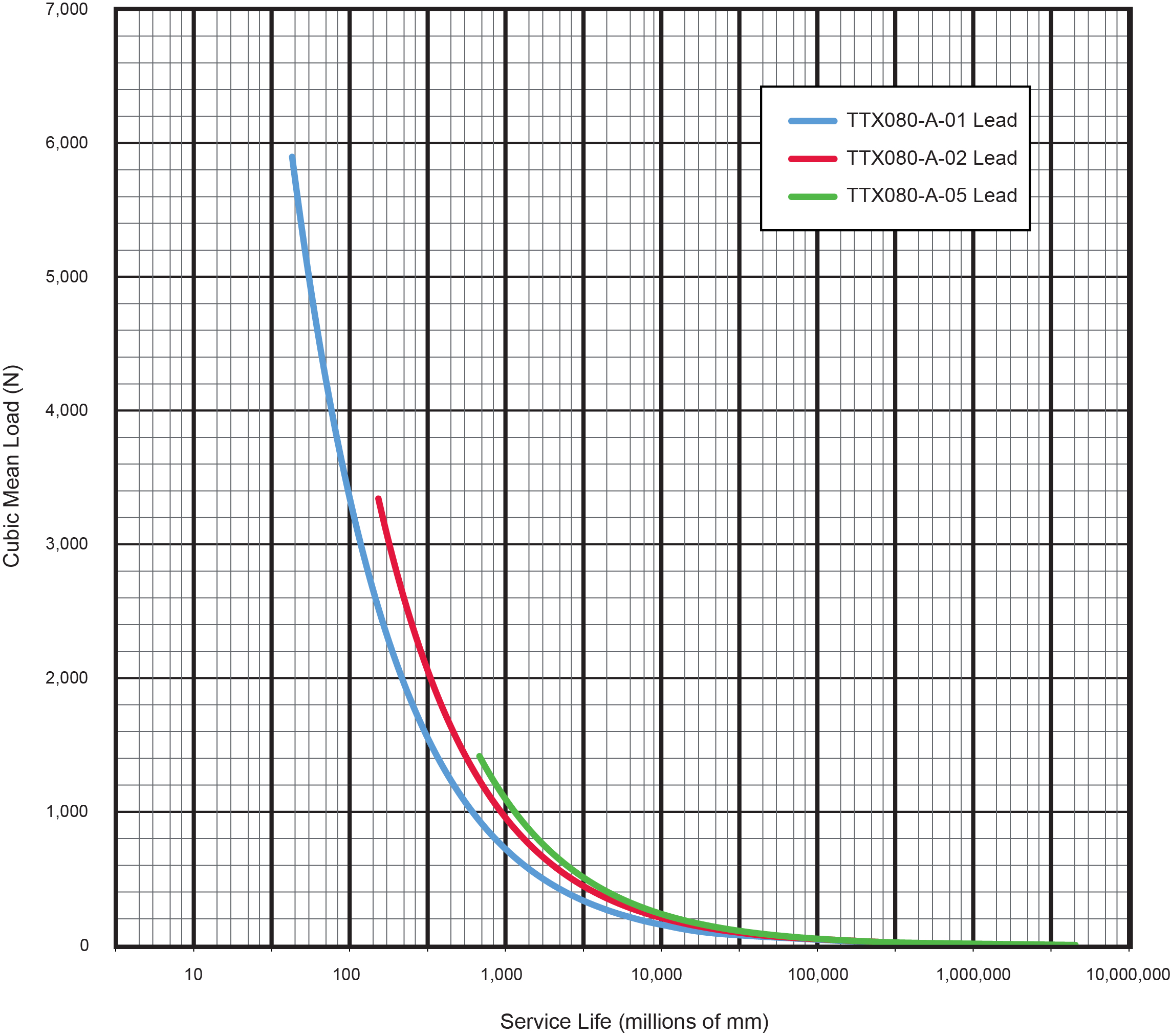

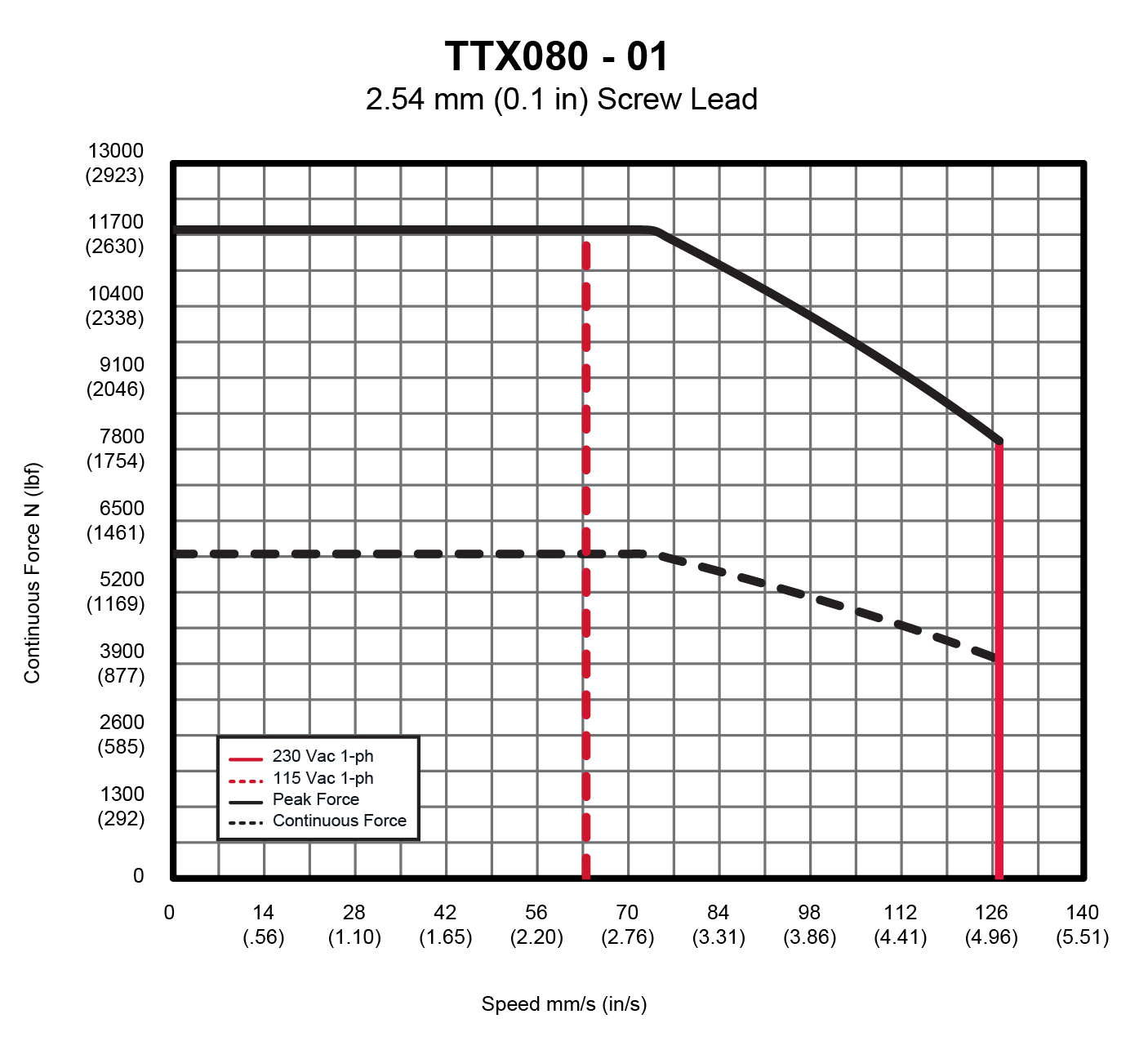

| TTX080-100-01 | 100 (3.9) | 2.54 (0.1) | 5,897 (1,326) | 4,970 (1,117) | 11,794 (2,651) | 8,946 (2,011) | 127 (5.0) | 102 (4.0) | 24,535 (5,516) | 0.000340 (0.003013) | 4.1 | 18 |
| TTX080-100-02 | 5.08 (0.2) | 3,342 (751) | 2,816 (633) | 6,683 (1,502) | 5,069 (1,140) | 254 (10.0) | 203 (8.0) | 25,798 (5,800) | 0.000340 (0.003013) | 4.1 | 18 | |

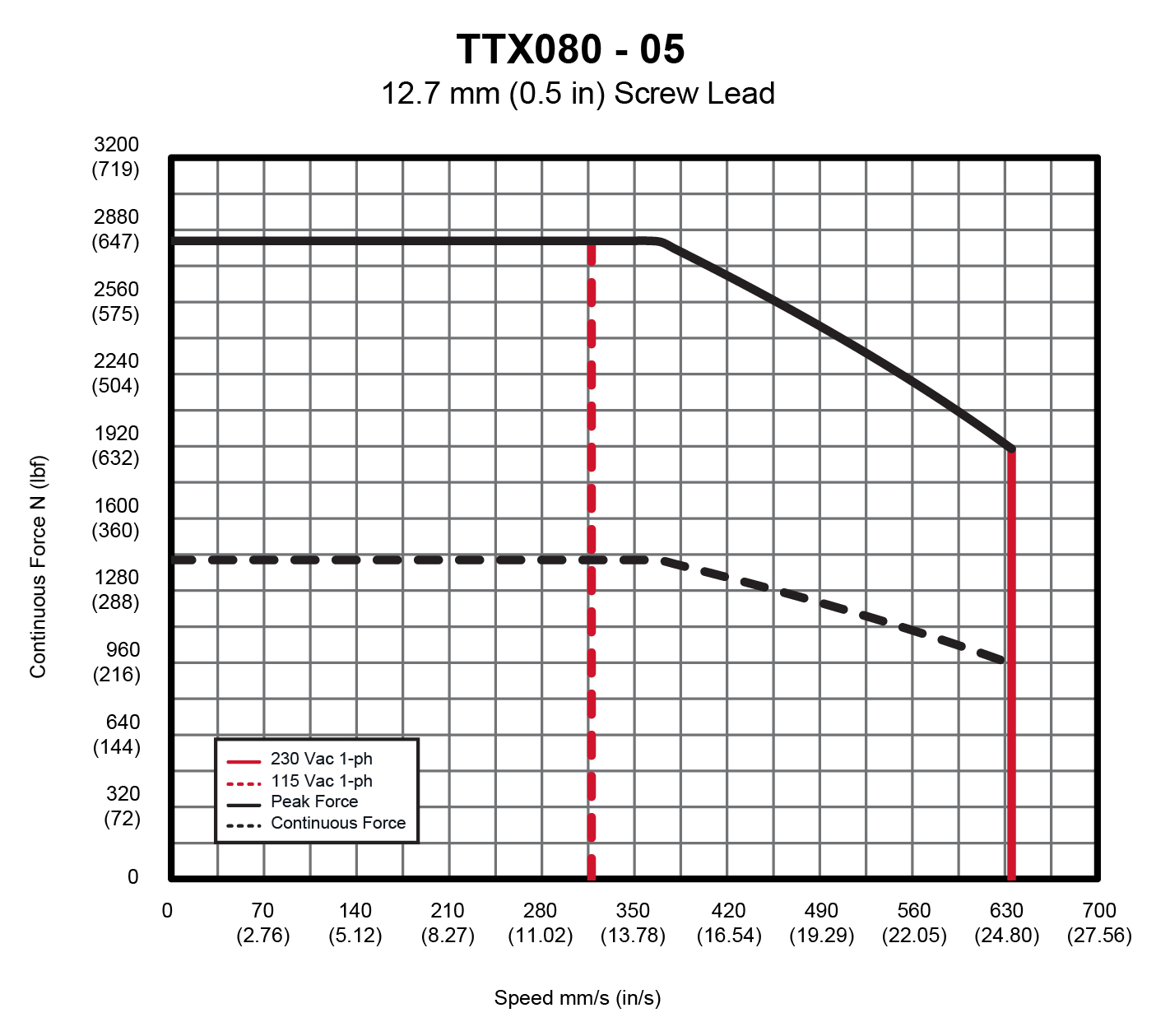

| TTX080-100-05 | 12.7 (0.5) | 1,415 (318) | 1,193 (268) | 2,830 (636) | 2,147 (483) | 635 (25.0) | 508 (20.0) | 21,795 (4,900) | 0.000340 (0.003013) | 4.1 | 18 | |
| TTX080-150-01 | 150 (5.9) | 2.54 (0.1) | 5,897 (1,326) | 4,970 (1,117) | 11,794 (2,651) | 8,946 (2,011) | 127 (5.0) | 102 (4.0) | 24,535 (5,516) | 0.000369 (0.003267) | 4.1 | 18 |
| TTX080-150-02 | 5.08 (0.2) | 3,342 (751) | 2,816 (633) | 6,683 (1,502) | 5,069 (1,140) | 254 (10.0) | 203 (8.0) | 25,798 (5,800) | 0.000369 (0.003267) | 4.1 | 18 | |
| TTX080-150-05 | 12.7 (0.5) | 1,415 (318) | 1,193 (268) | 2,830 (636) | 2,147 (483) | 635 (25.0) | 508 (20.0) | 21,795 (4,900) | 0.000369 (0.003267) | 4.1 | 18 | |
| TTX080-300-01 | 300 (11.8) | 2.54 (0.1) | 5,897 (1,326) | 4,970 (1,117) | 11,794 (2,651) | 8,946 (2,011) | 127 (5.0) | 102 (4.0) | 24,535 (5,516) | 0.000455 (0.004029) | 4.1 | 18 |
| TTX080-300-02 | 5.08 (0.2) | 3,342 (751) | 2,816 (633) | 6,683 (1,502) | 5,069 (1,140) | 254 (10.0) | 203 (8.0) | 25,798 (5,800) | 0.000455 (0.004029) | 4.1 | 18 | |
| TTX080-300-05 | 12.7 (0.5) | 1,415 (318) | 1,193 (268) | 2,830 (636) | 2,147 (483) | 635 (25.0) | 508 (20.0) | 21,795 (4,900) | 0.000455 (0.004029) | 4.1 | 18 | |
| TTX080-450-01 | 450 (17.7) | 2.54 (0.1) | 5,897 (1,326) | 4,970 (1,117) | 11,794 (2,651) | 8,946 (2,011) | 127 (5.0) | 102 (4.0) | 24,535 (5,516) | 0.000541 (0.004790) | 4.1 | 18 |
| TTX080-450-02 | 5.08 (0.2) | 3,342 (751) | 2,816 (633) | 6,683 (1,502) | 5,069 (1,140) | 254 (10.0) | 203 (8.0) | 25,798 (5,800) | 0.000541 (0.004790) | 4.1 | 18 | |
| TTX080-450-05 | 12.7 (0.5) | 1,415 (318) | 1,193 (268) | 2,830 (636) | 2,147 (483) | 635 (25.0) | 508 (20.0) | 21,795 (4,900) | 0.000541 (0.004790) | 4.1 | 18 | |
| DESCRIPTION | WEIGHT KG (LB) |
|---|---|
| TTX080-100 | 5.5 (12.2) |
| TTX080-150 | 6.2 (13.5) |
| TTX080-300 | 8.0 (17.6) |
| TTX080-450 | 9.8 (21.6) |
| Brake Adder | 1.1 (2.5) |
| Front Flange (1) | 1.0 (2.2) |
| Tapped Face (3) | 0.6 (1.2) |
| Rear Clevis (5) | 0.4 (0.8) |

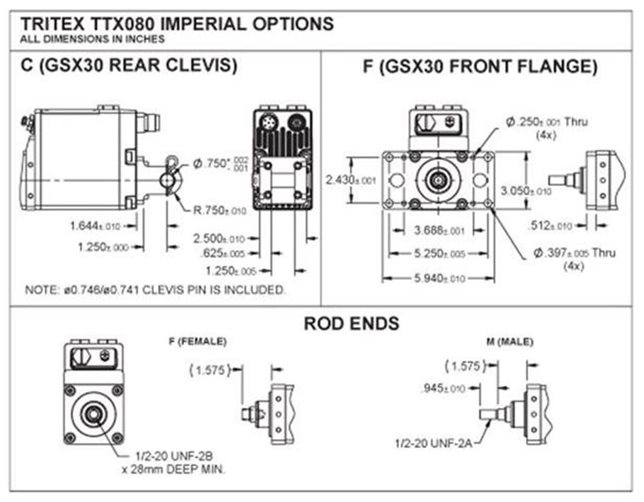

| Imperial Flange (F) | 0.8 (1.8) |
| Imperial Clevis (C) | 0.8 (1.7) |
| Anti Rotate (100 mm stroke) | 0.5 (1.1) |
| Anti Rotate (150 mm stroke) | 0.6 (1.3) |
| Anti Rotate (300 mm stroke) | 0.8 (1.8) |
| Anti Rotate (450 mm stroke) | 1.1 (2.4) |
| Limit Switch Assembly (100 mm stroke) | 0.9 (1.9) |
| Limit Switch Assembly (150 mm stroke) | 1.0 (2.3) |
| Limit Switch Assembly (300 mm stroke) | 1.6 (3.5) |
| Limit Switch Assembly (450 mm stroke) | 2.1 (4.7) |
|
Brake Holding Torque (minimum) |
Nm |
4.5 |
|
lbf-in |
40 |
|
|
Brake Voltage |
Vdc |
24 (-10%/+6%) |
|
Nominal Brake Current at 24 Vdc |
A |
0.5 |
|
Brake Engage/Disengage Time (typical) |
ms |
18/35 |
.jpg)
Printable view
Catalogs, Brochures, and Success Stories
Manuals and Technical Tips
Find more resources in our InfoCenter.
Tritex actuators have similar capabilities as a comparably sized hydraulic cylinders but without the cost or maintenance issues. High force, fast speeds, and precise movements make it a superior substitute for hydraulic applications
Tritex actuators have the same capabilities as a hydraulic equivalent but without the cost or maintenance issues. High force, fast speeds, and precise movements make it a superior substitute for hydraulic applications.
The Tritex II Series actuators are intelligent actuators incorporating on-board control and communications capabilities, enabling support for distributed control and IIoT architectures
Electric actuators offer high speed and force, are flexible and easily programmable for a variety of load conditions, have high accuracy and repeatability, are efficient, simple to install, require little maintenance, and are environmentally friendly.
By not using a hydraulic system, the user can eliminate oil leaks, reduce pollution, and improve worker safety. Electric actuators are also a non-toxic solution, especially in the food industry
The AC-powered Tritex II actuators contain a 1.5 kW servo amplifier and an on-board motion controller. With standard features such as analog following for position, compound moves, move chaining, and individual force/torque control for each move, the Tritex II can solve many of your motion control challenges.
The Tritex II with AC power electronics operates with maximum reliability over a broad range of ambient temperatures: -40˚C to +65˚C.
