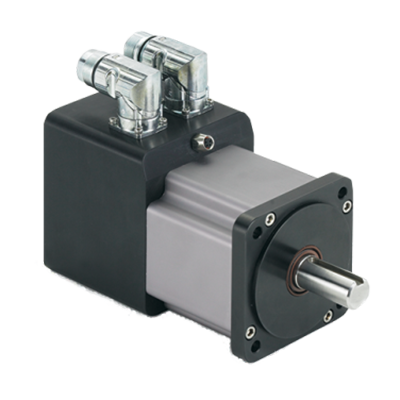

Fully Integrated Drive/Motor

Industrial - Exlar

The Tritex I Rotary actuator is an Obsolete Product, No Longer Available. Need a comparable replacement, try our Tritex II AC or DC Rotary actuators!

More Details

Find a Representative Manual

Overview


QUICK DATA
Models Frame Size mm (in) Reduction Ratio Peak Torque lbf-in (Nm)  Max Output RPM
RSM/060 60 (2.36) 4:1, 5:1, 10:1, 16:1, 20:1, 25:1, 40:1, 50:1, 100:1 20 (2.26) 5000
RSM/G090 90 (3.54) 4:1, 5:1, 10:1, 16:1, 20:1, 25:1, 40:1, 50:1, 100:1 70 (7.9) 1000
RTM/G060 60 (2.36) 4:1, 5:1, 10:1, 16:1, 20:1, 25:1, 40:1, 50:1, 100:1 20 (2.26) 5000
RTM/G090 90 (3.54) 4:1, 5:1, 10:1, 16:1, 20:1, 25:1, 40:1, 50:1, 100:1 70 (7.9) 1000

The option decriptions below are meant to be a reference only.

TRITEX I ROTARY Communications & I/O

Communications & I/O

Selectable Input Functions

Enable • Initiate Move (1-4) • Dedicated Position • Jog+ • Jog- • Jog Fast • Home • Extend Switch • Retract Switch • Home Switch • Teach Enable • Teach Move (1-4) • Stop • Hold • Alternate Mode; allows you to switch between 2 operating modes.



Selectable Output Functions

Enabled • Homed • Ready (Enabled and Homed) • Fault • Warning • Fault or Warning Active • Move (1-4) in Progress • Homing • Jogging • Jogging+ • Jogging- • Motion • In Position • At Home Position • At Move (1-4) • Position • Stopped • Holding • In Current Limit • In Current Fold back • Above Rated Current • Maintain a Preset Force • Home
Digital I/O: 8 input, 4 output, 10-24 VDC, optically isolated
Analog Input: 0 to +10 VDC or 4-20mA, 12 bit resolution
Analog Output: 4-20mA, 11 bit resolution
Serial Interface: RS485 Modbus RTU

Tritex Series Operation

The Tritex Series actuators can operate in one of five different motion producing modes. These modes solve an endless variety of applications in industrial automation, medical equipment, fastening and joining, blow molding, injection molding, testing, food processing, and more.

Programmed functions for the application’s motion requirements for linear and rotary motion control applications, product configurations and motion parameters are stored in the Tritex non-volatile memory. An RS/485 series interface allows control, programming and monitoring of all aspects of the motor or actuator as it performs your application.



Operating Modes

  1. Move To A Position (Or Switch)
    The Tritex Series actuators allow you to execute your programmed positions or distances. You may also use a limit switch or other input device as the end condition of a move. This combination of index flexibility provides a simple solution for point-to-point indexing.
  2. Move to a Preset Force or Torque
    The Tritex Series allows you to terminate your move upon the achievement of a programmed torque or force. This is an ideal mode for pressing and clamping applications.
  3. Position Proportional to an Analog Signal
    Ideal for process control solutions, the Tritex Series provides the functionality to position by following an analog input signal. This allows the Tritex Series to deliver precise valve control unachievable by other electric, hydraulic or pneumatic actuators.



Velocity Proportional to An Analog Signal

Tritex actuators offer you the capability to control velocity with an analog signal. This is particularly useful with Tritex rotary actuators offering precise control of the speed of any process or operation.



Force/Torque Proportional to Analog Signal

Perfect for pressing and torqueing applications, you can control torque from an analog input.

Print

|

Back to Top

Product Specifications



RSM/G060 Performance Specifications

RSM060 AND RSG060 PERFORMANCE SPECIFICATIONS

RSM and RSG Models require a TRA500 remote amplifier. For output torque of RSG gearmotors, multiply by ratio and efficiency.



Stator
RPM at 48 VDC*

1 Stack
1B8-50
5000

2 Stack
2B8-34
3400

3 Stack
3B8-25
2500

Ambient Temp

Degrees C

25

40

55

25

40

55

25

40

55

Continuous Torque

lbf-in (Nm)

5.9
(.66)

5.2
(.59)

4.5
(.51)

9.2
(1.0)

8.2
(.93)

7.1
(.80)

11.4
(1.29)

10.2
(1.15)

8.9
(1.01)

Peak Torque

lbf-in (Nm)

9.4 (1.06)

15 (1.69)

20 (2.26)

Power Supply Current Draw at Rated Power (48 V)

Amps

10

10

10

Resolution

0.001 revolution / ratio

Accuracy
(not including backlash)

+/- 0.005 revolution / ratio

*RPM @ 24 VDC = 1/2 of listed value



Printable view

RSM/G090 Performance Specifications

RSM90 AND RSG90 TECHNICIAL SPECIFICATIONS



Stator
RPM at 48 VDC*

1 Stack
1B8-17
1700

2 Stack
2B8-10
1000

3 Stack
3B8-07
700


Ambient Temp Degrees C 25 40 55 25 40 55 25 40 55

Continuous Torque

lbf-in (Nm)

22.1 (2.5)

20.1 (2.3)

17.7 (2.0)

37.2 (4.2)

33.8 (3.8)

30.0 (3.4)

50.9 (5.7)

46.4 (5.2)

41.5 (4.7)

Peak Torque

lbf-in (Nm)

30 (3.4)

50 (5.6)

70 (7.9)

Power Supply Current
Draw at Rated Power (48 V)

Amps

15

12

10

15

12

10

15

12

10

Resolution

0.001 revolution / ratio

Accuracy
(not including backlash)

+/- 0.005 revolution / ratio

*RPM @ 24 VDC = 1/2 of listed value

Printable view

RTM/G060 Performance Specifications

RTM060 AND RTG060 PERFORMANCE SPECIFICATIONS

FOR OUTPUT TORQUE OF RTG GEARMOTORS, MULTIPLY BY RATIO AND EFFICIENCY.



Stator
RPM at 48 VDC*

1 Stack
1B8-50
5000

2 Stack
2B8-34
3400

3 Stack
3B8-25
2500

Continuous Torque

lbf-in (Nm)

4.7 (.53)

7.5 (.85)

10 (1.13)

Peak Torque

lbf-in (Nm)

9.4 (1.06)

15 (1.69)

20 (2.26)

Power Supply Current Draw at Rated Power (48 V)

Amps

10

10

10

Resolution

0.001 revolution / ratio

Accuracy
(not including backlash)

+/- 0.005 revolution / ratio

*RPM @ 24 VDC = 1/2 of listed value

Printable view

RTM/G090 Performance Specifications

RTM090 AND RTG090 PERFORMANCE SPECIFICATIONS

FOR OUTPUT TORQUE OF RTG GEARMOTORS, MULTIPLY BY RATIO AND EFFICIENCY.



Stator
RPM at 48 VDC*

1 Stack
1B8-17
1700

2 Stack
2B8-10
1000

3 Stack
3B8-07


Continuous Torque

lbf-in (Nm)

19 (2.1)

29.3 (3.3)

45 (5.0)

Peak Torque

lbf-in (Nm)

30 (3.4)

50 (5.6)

70 (7.9)

Power Supply Current Draw at Rated Power (48 V)

Amps

12

10

10

Resolution

0.001 revolution / ratio

Accuracy (not including backlash)

+/- 0.005 revolution / ratio

*RPM @ 24 VDC = 1/2 of listed value

Printable view
